不同的用途与介绍/Purpose and introduction

该出产线由理瓶机(上瓶台)、超声检查波洗瓶机，包装(旋盖)加塞机，轧盖机，标贴机等设施分解成On the production line by unscramble bottle machine (bottle), ultrasonic bottle washing machine, filling (screw cap) stoppering machine, rolling machine, labeling machine and other equipment

特殊性/characteristic：

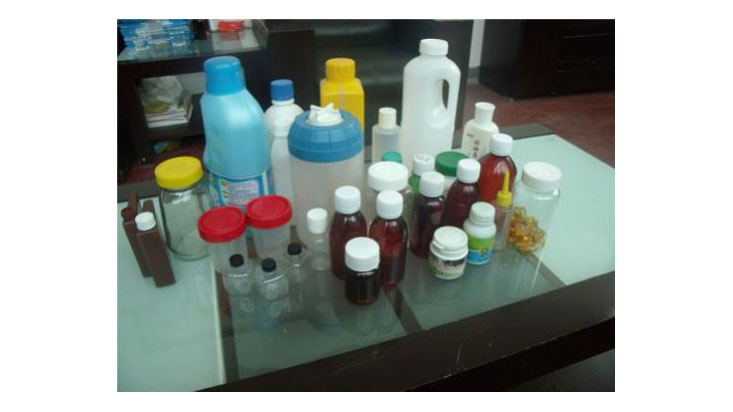

该生产销售制造线符合于 30-500ml系列作品类产品的灌装设备加塞封膜，进行更换很多要求镊子后，既符合于PVC瓶，也符合于的玻璃容器。还具有满足空间丰富，更改简单的的特点。整线生产销售制造性能；适塑料瓶规模图型，方式粘稠度而定。The product line is suitable for 30-500 ml series products filling barging sealing, change some specifications after the mould, is suitable for plastic bottle, also suitable for glass bottle. Have to adapt to a wide range, convenient adjustment. The whole line production capacity; Optimum size bottle shapes, object on the viscosity.

能力因素/technical parameters：

生产能力production capacity(pcs/h)	80-120(8针灌装、6头轧盖    40-60(4针灌装、单头轧盖)
洗瓶无尘室度Washing bottle cleanliness(%)	> 99
装量偏差The load error(%)	0-2
上塞达标率Plug on the percent of pass(%)	> 98
轧盖合理率Rolling cover percent of pass(%)	> 98
功率power(kw)	11
外形尺寸boundary dimension(LxWxH)   (mm)	9.740 × 1,470 × 1,785
