贷款用途与介绍/Brief Introduction：

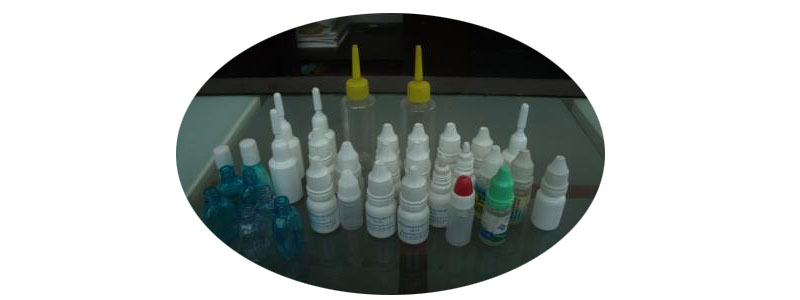

远程服务器使在2-30ML种种材料的弧形扁形PVC或破璃瓶的眼蓝药水装罐、电子无线烟油等小的用药量装罐.远程服务器由高精密等级轴承轴度数组织机构带来了度数等分盘地位上塞上盖;迅时间轴承轴齿轮变速箱带来了旋盖头的伸降;恒功率旋盖;扭动泵剂量装罐;接触屏操纵.无瓶不装罐,要加内塞,外盖.具地位精准度,齿轮变速箱趋于稳定,保护区酒盖,剂量准.操作步骤简简单单等优越性。This machine is mainly available to fill eye-drop into various round and flat plastic or glass bottles with the range from 2--30ml.High precision cam provides a regular plate to position, cork and cap; accelerating cam makes capping heads going up and down ;constant turning arm screws caps; creepage pump measures filling volume; and touch screen controls all action. No bottle no filling and no capping. If there is no plug in the bottle, it must not cap until having been detected plug in the bottle. The machine enjoys high position accuracy, stable driving, precise dosage, and simple operation and also protects bottle caps.

亮点/Characteristic：

◆微台式电脑重设、装量精密、进行操作便捷。Man-machine dialogue system setting,visual convenient operation ,accurate filling level。◆台式主机转数可采取无级变速定频可控硅调压。the mainframe running speed is stepless frequency conversion.◆生产加工量自动化按量抑制。the product quantity can be controlled. ◆多类错误码提升功能键(如低大气压力。无分装、无内塞等)。Multi-failure prompt function (such as infrabar, no filling and no inserting plug etc).    ◆智能停用系统，对任意道轨发现间断性无灌装线、无内塞状态可智能停用。Automatic stop function, if there is no filling, no inner plug in any rail, it may stop automatically.

技術参数表/Main Technical Parameters：

采用的规格Filling Volume	2-30ml
工作力Productivity	30-60瓶/分  70-100瓶/分 30-60bottles/min  70-100bottles/min
灌装线精确Filling Precision	≤±1%
24v电源 Power Supply	380V/50Hz
旋（轧）盖率Capping Rate:	≥99%
手动上塞率Stoppering rate	≥99%
气动阀门Air Supply	1.3 m3/h    0.4-0.8Mpa
瓦数 Power	2.0 kw
机器设备净含量Weight	550 kg
形壮尽寸Dimension	1800*1000*1500mm
