不同的用途与间介/Purpose and introduction：

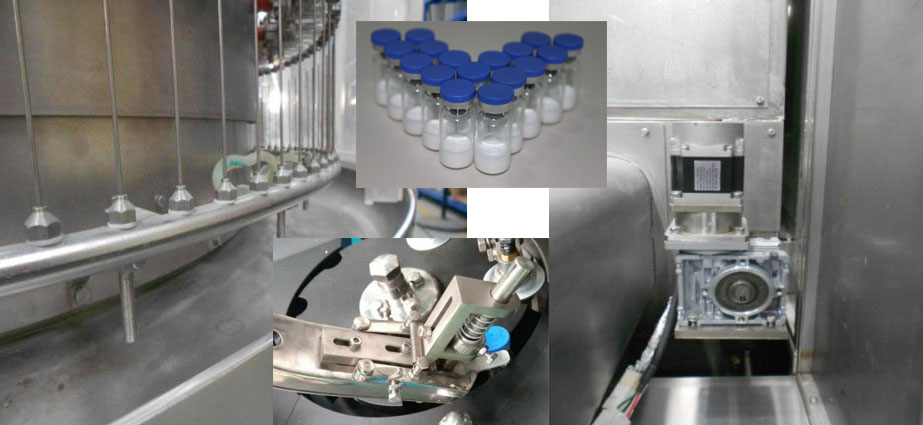

NQGF型西林瓶粉针洗烘预包装轧盖标贴纸连动线 由QCL型号作品开式高周波波洗瓶机、AQMR桥隧式暖风循环系统往复杀菌处理真空烘箱、NQFGX型号作品加工中心螺丝杆粉剂预包装机、NQ-50轧盖机、NQWTB-120标贴纸制冷机组成，也可pc单机的使用。最合适于7-25ml规格参数的西林瓶粉针的生產。能做好喷洒打压试验、高周波波粗洗、瓶表面水冲干净、瓶表面持续首次循环系统往复水冲干净、两次吹气、两次新鲜度水冲干净、持续首次吹气、瓶表面吹气、清洁工作、加热、烘烤杀菌处理去热原、冷却塔、预包装、加塞、轧盖、标贴纸等二十来道工步。NLGF schering bottles booster injection wash baked repackaging rolling cover labeling line consists of QCL series vertical ultrasonic bottle washer, ASMR tunnel type hot air circulation oven. NFFGX series CNC screw powder filling machine, NF-50 rolling machine, NFWTB-120 labeling machine, and also can be used stand-alone. Suitable for 7 to 25 ml specification schering bottles of water production. Can finish the spray water injection, ultrasonic thick bottle washing, the outer wall of water flushing, bottle wall continuous secondary circulating water flushing, a blowing, a fresh water rinse, two consecutive bottle blowing, blowing the outer wall, preheating and drying sterilization to pyrogen, cooling, packaging, gasser, cover, labeling and so on more than 20 procedures.

优点/characteristic：

◆洗瓶机采取机械化手夹瓶，适用性许多种要求的西林瓶；Bottle washer adopts manipulator clamp bottle, is suitable for a variety of specifications of schering bottles;◆洗瓶选用气水喷针导杆监测添加图片图方试，擦洗功能好，不仅节约资源。并均有针架防颤动平衡装置，增加喷针添加图片图可乐瓶的明确度，变少断针后果引发；Reciprocating mixer washing bottle with water spray needle track insert way, cleaning effect is good, save energy. And is equipped with needle shake device, improve the accuracy of injection needle inserted into the bottle, reduce breakage phenomenon;◆洗瓶某个水汽线路、喷针截然独力错开，以防了交叠生态破坏，非常符合GMP必须必须；Mixer washing bottle the water pipe, injection needles completely separate, to avoid the cross contamination, in line with the GMP requirements;◆洗瓶机进瓶丝杆前加装有减慢块，有维护丝杆，限制碎瓶目的；Pieces into the bottle inside the screw before adding buffer block, protect the screw, reduce broken bottle;◆洗瓶机出瓶选用整体性原产同步操作带，联接拨瓶块输送管西林瓶，电脑运行维持信得过；Pieces out of the bottle inside the whole import synchronous belt, the connection dial the bottle conveying schering bottles, operation is stable and reliable;◆烤箱用暧风循环往复热处理加热，水温不均，节能环保；Oven adopts hot air circulation heating, temperature uniformity, energy saving;◆真空烘箱还拥有防就断掉电源保养系统。正常运行安全的；Mixer oven has suddenly loses power protection function. Run security;◆干燥箱可配反复的油冷仪器，不消耗的资金屋子里新风量，下降屋子里的气体压力不稳定的隐患下降特效好；Mixer oven can match circulating water cooling device, not loss room air volume, reduce the risk of differential pressure imbalance in room cooling effect is good.◆烘烤箱可配气体压力自然平横上下调整系统性削减空间和烘烤箱的气体压力不平横会导致的高摄氏度段移位，灌装线间洗烘间摄氏度升高等教育多个表的大问题；Mixer automatic oven can match differential pressure balance control system to reduce the room and high temperature oven pressure difference caused by the imbalance of period of migration, filling between wash between baking temperature and so on a series of problems;◆真空烘箱配有DOP验测接口协议(其中包括静压、风压、尘沙a粒子验测口)；Mixer oven with DOP test interface (including wind pressure, wind speed, dust particle detection);◆干燥箱冷却后段可带同屏在线无菌功效(FDA特选)；Mixer oven cooling segment with the function of sterilization (FDA selected);◆恒温干燥箱网带可带高周波涉及CIP免费在线擦洗系統；Type mixer oven mesh belt with ultrasound scanning CIP online cleaning system;◆烘干箱内腔室可做好全多方面、多视场角低压水清洗阴道；In pieces inside the oven chamber can be all-round, multi-angle high-pressure water flushing;◆散装机选取国际级更先进的的设定心理，兼有髙速率，另一方面分瓶最准确，拆卸产品规格件更方便；Mixer racking machine adopts the most advanced design concept, high speed, and bottles of accurate, replacement of a convenient;◆分开包装机主要采用交谈交流接触器驱使器交流接触器驱使分开包装丝杆旋轉，装量精确度高；Mixer racking machine adopts ac servo motor drive the repackaging screw rotation, the load accurately;◆全自动灌装机机使用装量的调控随时在触感屏上改变；Mixer packer adopts the load adjustment directly on a touch screen;◆分开包装机可以配百级配置式层流罩；Mixer packer optional circulating laminar flow hood best level;◆散装机无瓶结束散装，无瓶要加塞的功能。Racking machine without stop packing bottle, no bottle no stoppered function.◆整线应用PLC总调控、直流abb变频器、触控屏调控高技术，正常运转固定稳定。触控屏可表现各单机手机游戏的正常运转形态，各调控点的水流量、压力、风速、温等表现，各保持开关形态和常见错误码表现，常见错误码个人检查和常见错误码分享及在排除具体方法。使另一工作过程中起到系统工业自动化调控，联线包括自我控制平衡安全装置，以确保工作平衡稳定。The whole line adopts PLC control, inverter, touch screen control technology, stable and reliable running. Touch screen can display the running state of each units, each control point of the water pressure, air pressure, air pressure, temperature, etc, according to the switch state and fault display, fault self-diagnosis and fault analysis and elimination method. Make the whole production process automation control, on-line has the automatic balancing device, ensure production equilibrium is reliable.表明老客户的要，还可供选型：According to the needs of customers, but also available for selection:◆西门子PLC、斯耐德、三菱PLC、台达等国际品牌掌握系統；Pieces of Siemens, schneider, mitsubishi, Taiwan brands such as control system;◆水、气经济压力、油温及超声心动图波屈服强度、颗粒物体、空气流速线下查重、告警、数据、直接打印控制系统；Pieces of water, gas pressure, water temperature and the intensity of ultrasonic, dust particles, wind speed on-line detection, alarm, record and print system;◆ORABS、CRABS、没有细菌底部隔离器体系。ORABS, CRABS, aseptic isolator system.

技木参数指标：/technical parameters

参数 model

产量意识production capacity

洗瓶合格达标率Washing bottle percent of pass

洗瓶坏损率Washing bottle breakage

无菌水温sterilizing temperature

包装差值The repackaging of error

加塞通过率Gasser percent of pass

水汽层流美观度Laminar air cleanliness

真空泵抽速Vacuum pumping speed

电容（电容器）量 capacitance

交流电源power supply

总电量显示Total transmission energy

外表图片尺寸boundary dimension

7-25ML国际标准西林瓶 7-25ML GBvial

300瓶pcs/分min ～600瓶pcs/分min

≥99%

≤0.1%

300℃-350℃

≤±3%(0.1-10h)

≥99%

100级100c

25m3/H(外配)100cbm/H ～50m3/H(外配)100cbm/H

96kw～235.5kw

380v,50HZ

约 8200KG

约 2000×1750×2370mm
